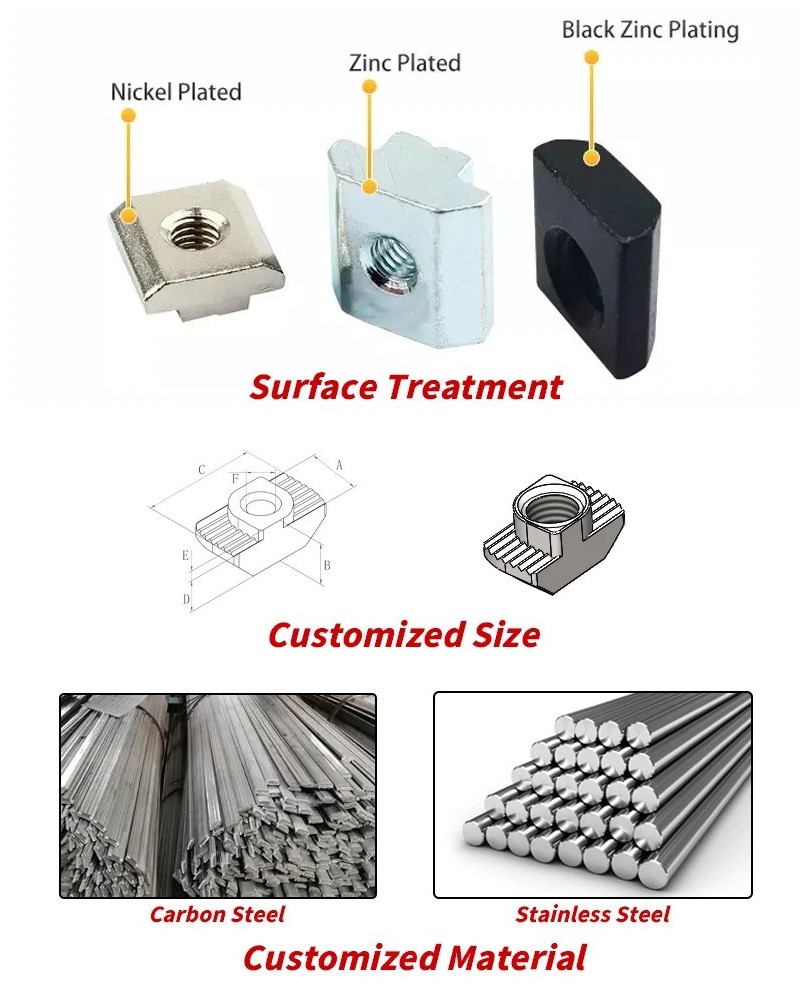

| 1. Surface Treatment |
Zinc plating (environmentally friendly zinc, typically 5-8μm, special: 12μm, Cr³⁺) Nickel plating (higher cost, better corrosion resistance) Dacro (Geomet) coating |
| 2. Slot Width |
Profile 20mm: Slot width 6 or 5mm Profile 30mm: Slot width 8 or 6mm Profile 40mm: Slot width 8 or 10mm Profile 45mm: Slot width 10mm |
| 3. Step Size |
Step height for Slot 10mm: Typically 3.0mm Step height for Slot 8mm: Typically 1.5mm |
| 4. Material |
Standard: 20# steel Options: Low carbon steel (Q195, Q235, C1020) or medium carbon steel (35#) Stainless steel options available Grade: 4/6/8/10/12 |
| 5. Thread |
Metric threads (common): M3, M4, M5, M6, M8, M10 US threads: 10-32, 1/4-20, 5/16-18 |
| 6. Teeth |
2 teeth, 4 teeth, 7 teeth (fine teeth) Other options: T-nut, slide-in nut, ball nut, spring-loaded nut, rhombus nut, flange nut |
| 7. Raised Dots | Raised dots on T-nut for electrical conductivity |
| 8. Inspection |
1. Compatibility with profiles 2. Compliance with thread standards (pre-galvanized: 6G, post-galvanized: 6H) 3. For slot width 6 profiles, thread hole size should not exceed M6 4. For slot width 8 profiles, thread hole size should not exceed M8 5. For slot width 10 profiles, thread hole size should not exceed M10 6. Tolerances according to ISO2768-MK |
