5.8g Rx Port 3.0 Board Analog Receiver Module 2s-4s Support DVR Port for Dji V1 V2 Digital Fpv Goggles 3D Adapter Accessories

Product Description

The digital image transmission system and visual perception of DJI FPV flying glasses represent the evolution of the FPV industry. At the same time, the simulated FPV system represented by Fatshark also has a very large market base and inventory.

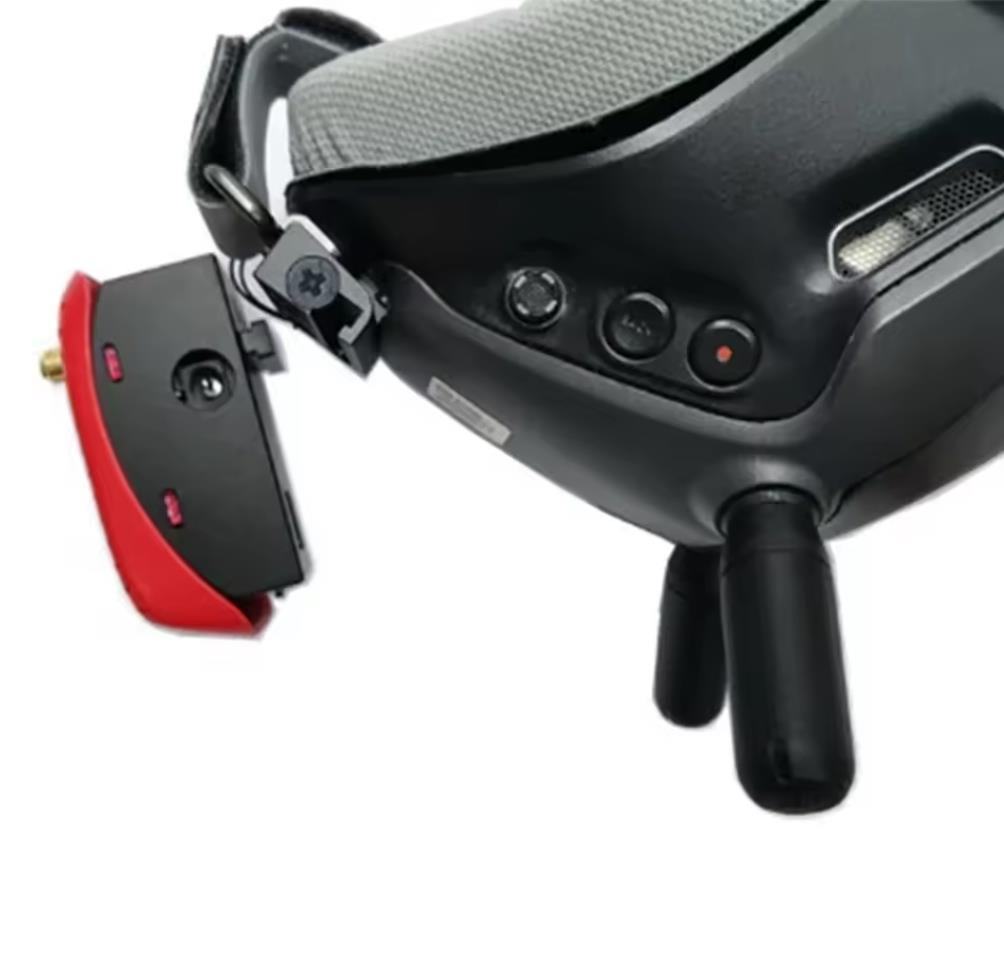

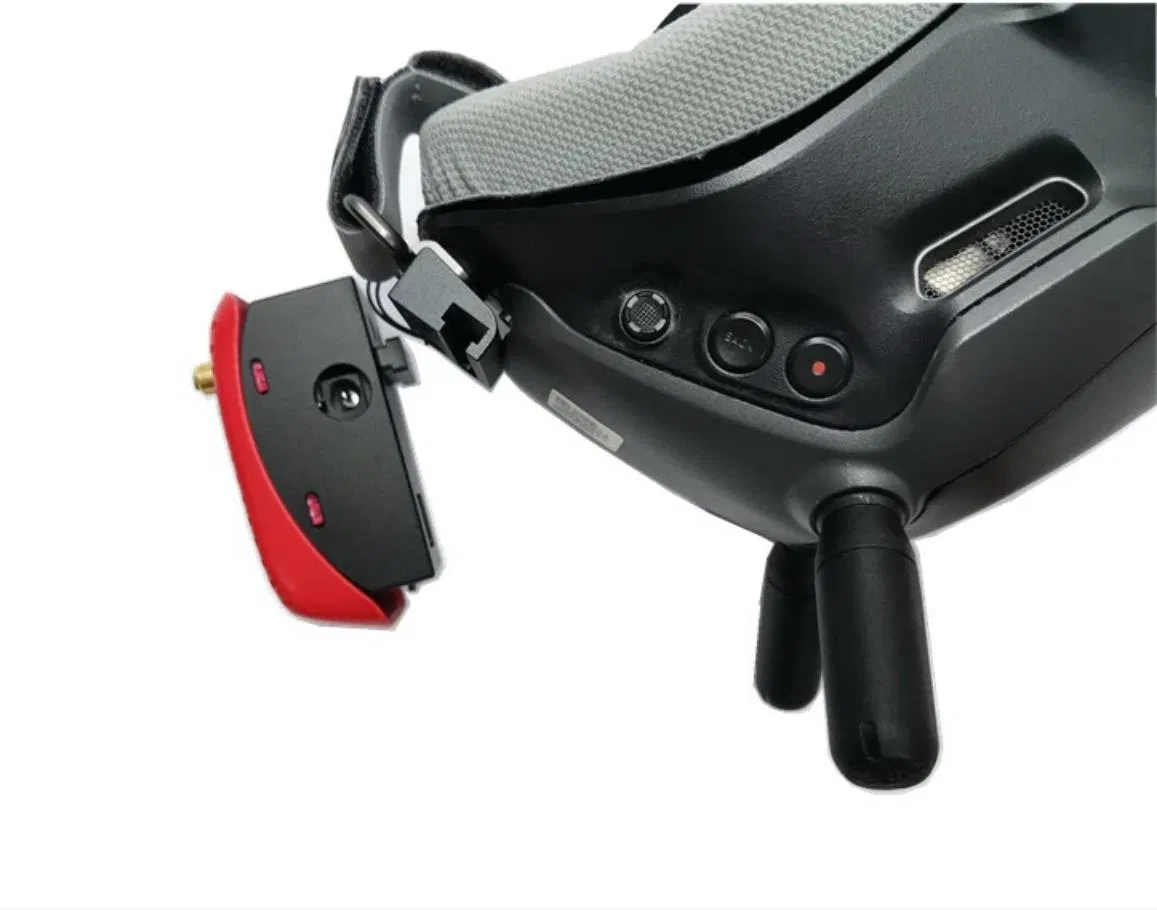

The design of 1.2G 1.3G 5.8G RX PORT 3.0 PLUS is fixed with the screw of DJI flying glasses headband ring and is completely non-destructively installed on the side of DJI flying glasses. This allows you to easily transfer video and audio signals to the high-quality screen of DJI FPV flying glasses for viewing or recording. It is small, lightweight, portable, and versatile, making it highly popular with players who have both analog and digital FPV flight equipment.

Specifications

Item Name

Receiver Module

Power Input

2S-4S (DC 5.5*2.1)

Internal Voltage

5V 3A (output with welded pad)

Power Output

2S-4S (DC 5.5*2.1)

Signal Input

Standard Fatshark receiver interface (including third party receiver: Reaxacc Furious Rapid Fire)

Signal Output

Standard audio/video, support external connecting DVR module, with voltage display and low voltage alarm

Size

55 x 28 x 12 mm

Weight

13g (NOT include adapter cable)

Compatibility

Used for DJI FPV V1 V2 Goggles

Latest Upgrades

Interface & DVR Upgrades

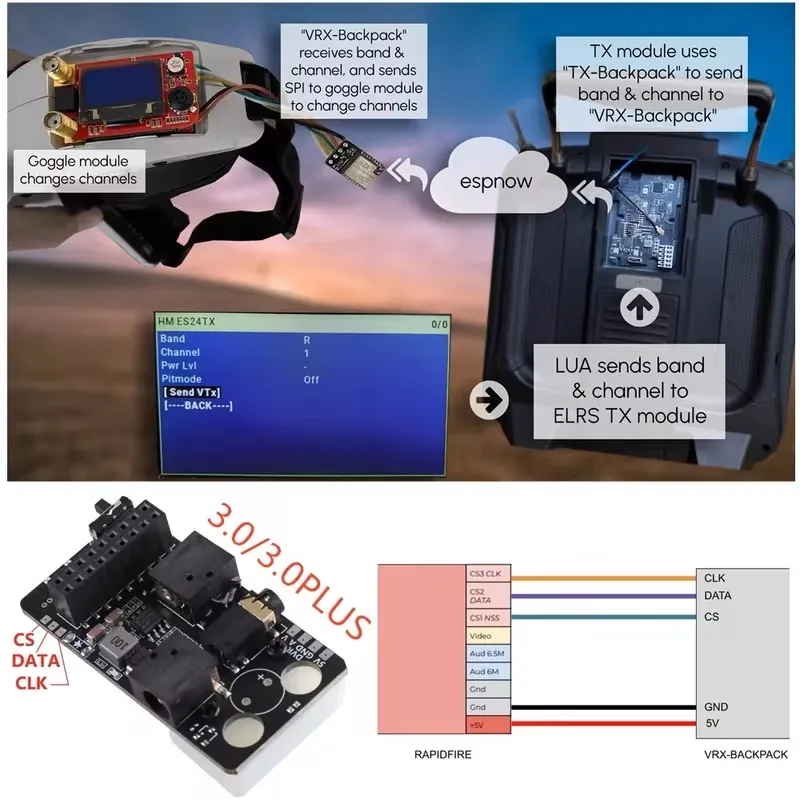

Adds a Backpack function interface, a power switch, and a standard DVR interface (the video module interface). Although DJI FPV Goggles 0200 version supports DVR recording without sound, our reserved standard DVR interface allows connection to custom DVRs to record both images and audio.

Nixie Tube Display

Includes a Nixie tube displaying real-time battery voltage with customizable low voltage alarms. It can also function as a 1.2G 1.3G 5.8G receiving base station to modify various FPV goggles and monitoring screens.

Important Notes

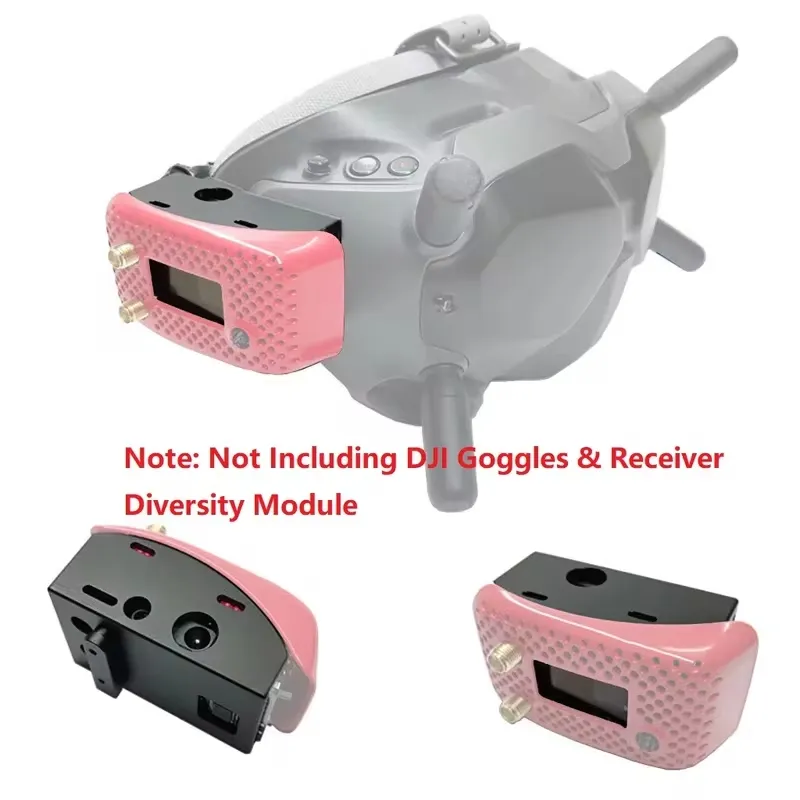

1. The goggles and other equipment are not included in the package.

2. The metal adapter can be used for both 3.0 and 3.0 Plus versions. When using the 3.0 Plus version, you must gently break the front end of the casing with small pointed pliers to expose the digital display screen.

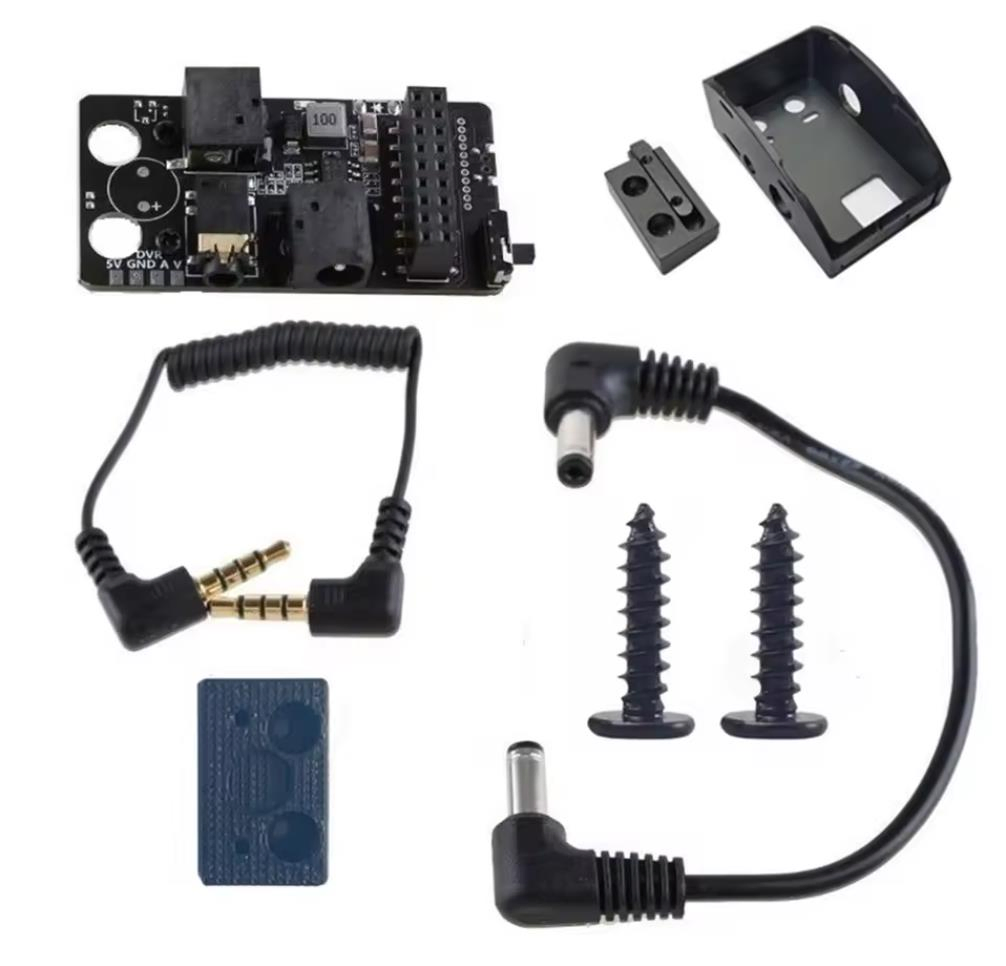

Package Included

1 set x Adapter mounting block and screws

1 x Audio and video cable

1 x Power cable

1 x URUAV 1.2G 1.3G 5.8G RX PORT 3.0-PLUS Receiver Board

1 x Metal Adapter

Product Gallery

5.8g Rx Port 3.0 Board Analog Receiver Module 2s-4s Support DVR Port for Dji V1 V2 Digital Fpv Goggles 3D Adapter Accessories

Frequently Asked Questions

QWhich goggles are compatible with this receiver module?

This receiver module is designed specifically for DJI FPV V1 and V2 Goggles.

QHow is the module installed on the goggles?

It is fixed using the screws of the DJI flying glasses headband ring, allowing for a completely non-destructive installation on the side of the goggles.

QDoes this module support recording both audio and video?

Yes, it features a reserved standard DVR interface. This enables you to connect an external DVR module to record both image and sound signals together.

QWhat is the function of the built-in Nixie tube?

The Nixie tube displays the battery voltage in real time and allows you to set low voltage alarms to protect your equipment.

QWhat are the power input and output specifications?

The module supports a power input of 2S-4S (DC 5.5*2.1) and provides a power output of 2S-4S (DC 5.5*2.1), alongside an internal voltage pad output of 5V 3A.

QCan the metal adapter block be used for both 3.0 and 3.0 Plus versions?

Yes. However, if used for the 3.0 Plus version, you will need to gently break the front end of the casing using small pointed pliers to expose the digital Nixie tube screen.
